1997 Rav4-EV Valadation Prototype
Traction Pack detail


===

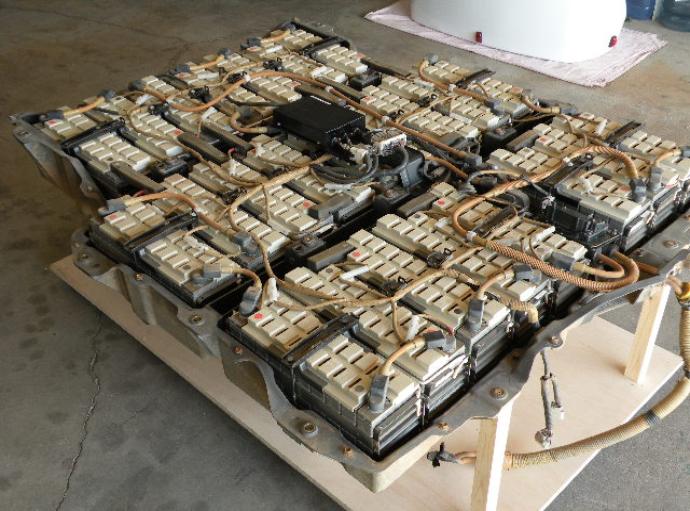

This page displays an early version '97 Rav4-EV traction battery
pack with c1996 Panasonic EV-95 NiMH 12v nominal
modules.  Note the white plastic covers which were replaced in later
models in favor of an individual rubber cap design.

There are three other notable physical differences between
this early design and the later 2002/'03 production models, including:

===

1) the early design emergency disconnect is located at the front
of the pack, a.k.a. in the front seat right-side floor area
where later models had the disconnect moved to
the rear aligning the disconnect with the drivers side left (US)
rear seat floor board;

===

2) the early design battery control module ECU is
located in the middle tray where later models the ECU
was moved to the forward tray; and,

===

3) the ambient air fan cooling supply,
which was a single, seperate, front mounted fan in '97, was later
integrated into the battery tray system, expanded to a dual
fan system, and moved to the rear section
of the pack.

===


--->  Additional pictures below  <---


===
