1998 S-10-E Electric Truck

EV1 System 110 Inverter

Lead Acid PbA Leveling Charge Screens
Tech 2

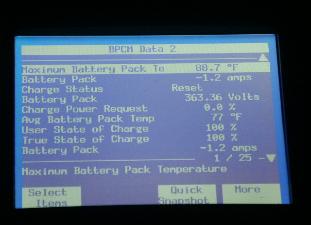

These screen shots review a leveling / equalization
charge with PbA programing.

The charge was initiciated through the Tech 2 Equalization
command @ 6:40am as shown on the clock.

Our idea in monitoring this programing was to review the times,
various stages, and amperes of the charge
including various other data including battery temperatures.

These screens are focused on status, amperes and % SOC.
Additional screens not shown here trace
individual battery voltages, temperatures, cooling
status and temperatures, etc.
