1993 Dodge TEVan

('93) only - production 56 units - <12 known to exist c2022

BEV designed by Joint Venture between Dodge & GE c1993

- --> 30kWH capacity traction pack - 0.83 gallon gas equivalent

- --> 80 mile nominal range

- --> 50kW / 36hp equivalent SEPEX traction motor

- --> 2 speed semi-automatic EV transmission

-- Beata Collection --

-- Beata Collection --

P

i

c

t

u

r

e

s

b

e

l

o

w

.

.

.





Inside the Eagle-Picher NiFe (Nickle-Iron) Battery


Originally patented by Thomas Edison c1890s

===


Here are some pictures showing the five
cells of the NiFe (Nickel-Iron) 'Edison' batteries produced by
Eagle-Picher in the early 1990s.  Pictures of the watering
tray bypass systems are also included below.


===


--->  Additional pictures below  <---


===

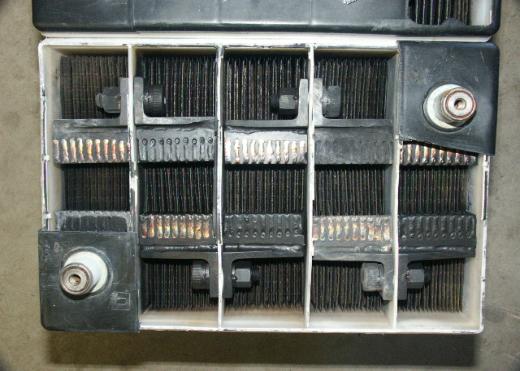

Looking inside the 5 cells of the EP Nife modules.

Note the positive and negative cell alternations.

Another view inside.

This view shows the exposed inside of the NiFe battery watering system from the top.

1993 Eagle-Picher NIF-200 Battery Data Sheet
